Manufacture ID: NVMPPVS1420

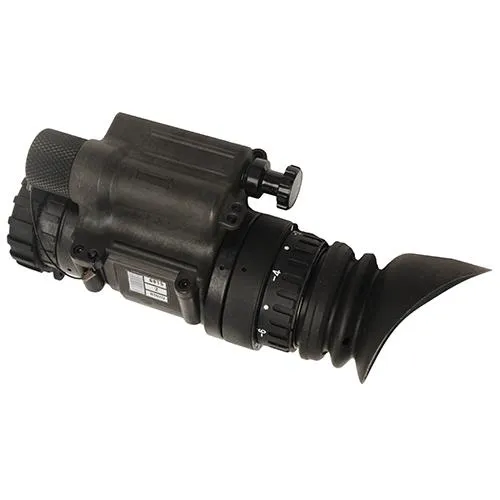

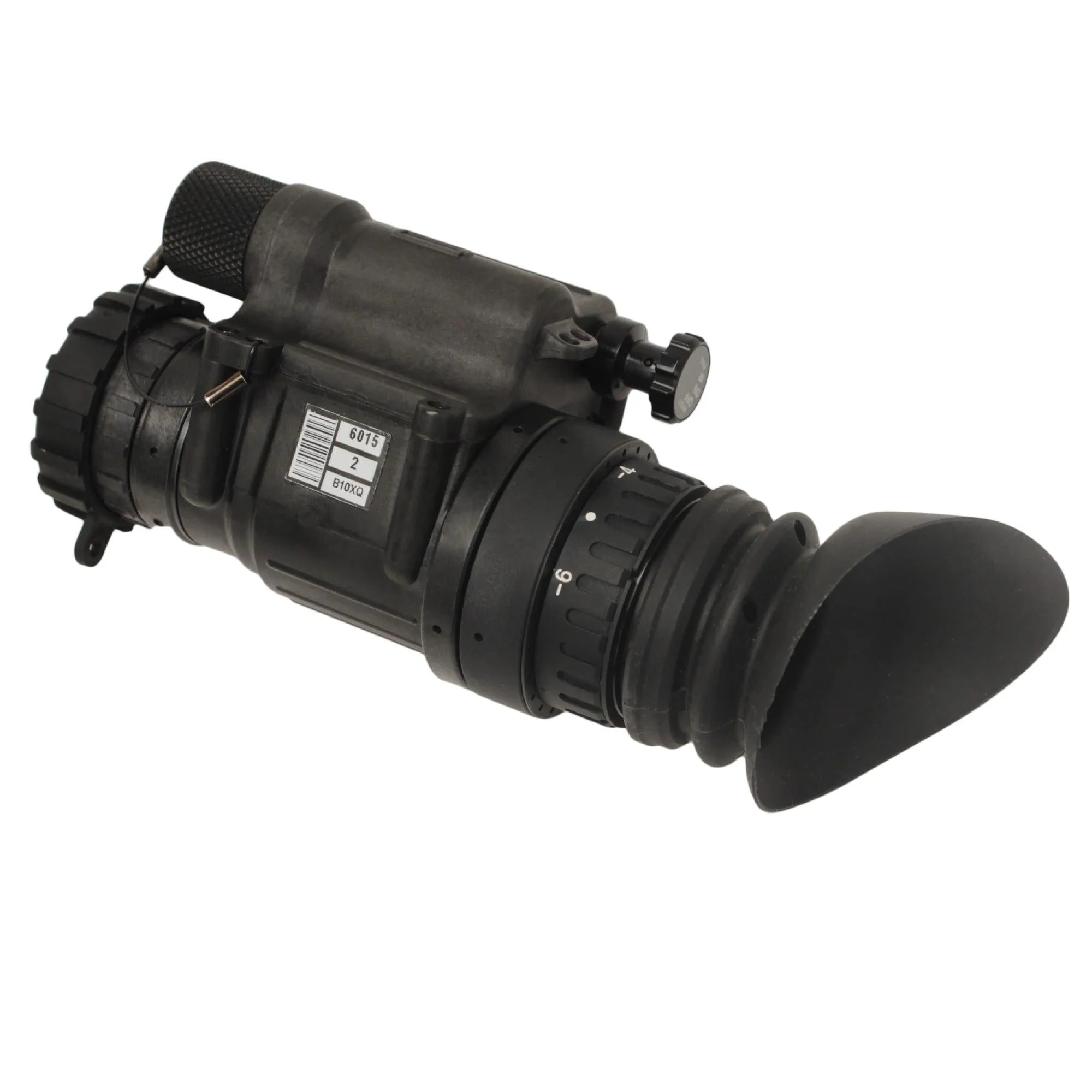

The ATNs PVS14/6015 are rugged, lightweight and versatile night vision monoculars, designed for the most demanding of nighttime applications. The PVS14/6015 can be handheld, head/helmet-mounted for hands-free usage or adapted to cameras/camcorders. Originally designed for the U.S. military, these units are of the highest quality in optics, design and functionality. The ATN PVS14/6015 is an outstanding choice for professional night vision applications.

Features:

- US Military design
- Multi-Purpose unit
- Handheld monocular

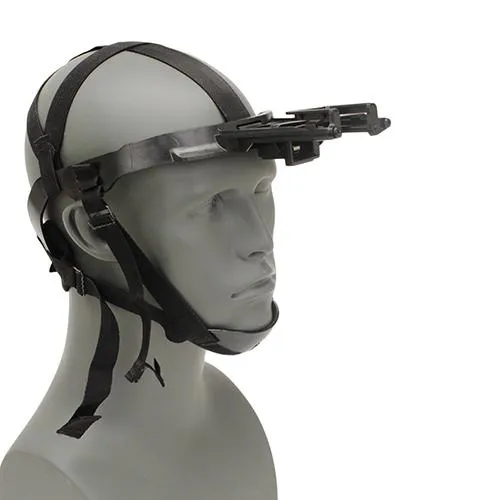

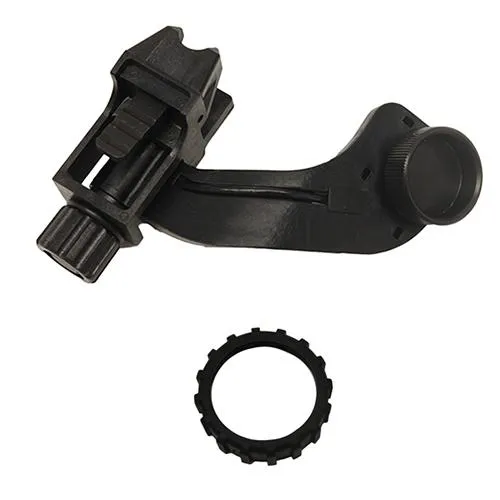

- Hands-free goggle (optional helmet mount)
- Mil-Spec headgear

Specifications:

- Magnification: 1x 0.03
- Lens System: 27mm; F1.2
- Proshield Lens Coating: Yes
- Field of View: 40
- Range of Focus: 0.25m to Infinity
- Diopter Adjustment: -5 to 2
- Controls: Direct
- Manual Gain Control: Yes
- Automatic Brightness Control: Yes
- Bright Light Cut-off: Yes
- Automatic Shut-off System: Yes
- Infrared Illuminator: Yes
- IR Indicator: Yes
- Low Battery Indicator: Yes
- Power Supply: 1 x 1.5 V AA Battery
- Battery Life: 50 Hours
- Environmental Rating: Waterproof
- MIL-STD-810: Complies
- Operating Temperature: -60F to 120F
- Storage Temperature: -60F to 185F
- Dimensions: 4.50" x 2" x 2.25"
- Weight: .78 lbs

Tube Specifications:

- High Quality 2 Gen Image Intensifier Tube
- Description: Standard
- Generation: 2
- Photocathode Type: Multi - Alkali
- Resolution: 40-45 (lp/mm)
- Signal to Noise Ratio: 12-20
- Figure of Merit: < 1250
- MTTF (Mean Time Before Failure): 5,000 Hours
